Conector circular a prueba de agua

M23 Series Waterproof Circular Connector with 30A Current Rating 100% Dustproof and UL94 V-0 Flame Resistance

Todas Las Categorías

Conector circular a prueba de agua

Conector hembra-varón impermeable

Conector de señal a prueba de agua

Conector de datos a prueba de agua

Conector de montaje de panel impermeable

Conectores LED a prueba de agua

Enchufe de energía

Éntrenos en contacto con

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contacto ahora

M23 Series Waterproof Circular Connector with 30A Current Rating 100% Dustproof and UL94 V-0 Flame Resistance

Nombre De La Marca:	Cablein
MOQ:	100pcs
Precio:	The price ranges from $1 to $4 USD per pieces
Detalles Del Embalaje:	Carton de exportación de alta calidad
Condiciones De Pago:	T/T, Unión Occidental

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Shenzhen China

Certificación:

CE, ROHS, TUV , ETL

Calificación actual:

30A

A prueba de polvo:

100% a prueba de polvo

Nivel de protección:

IP68

Resistencia a aislamiento:

≥1000mΩ

Camino de la Conexión:

Conexión rápida

Toma de tierra:

puesta a tierra estándar

Tensión nominal:

450V

Calificación de resistencia a la llama:

UL94 V-0

Capacidad de la fuente:

Salida mensual: 10,000 conjuntos

Resaltar:

30A Current Rating Waterproof Circular Connector

100% Dustproof M23 Series Connector

UL94 V-0 Flame Resistance Quick Push-Pull Connector

Descripción de producto

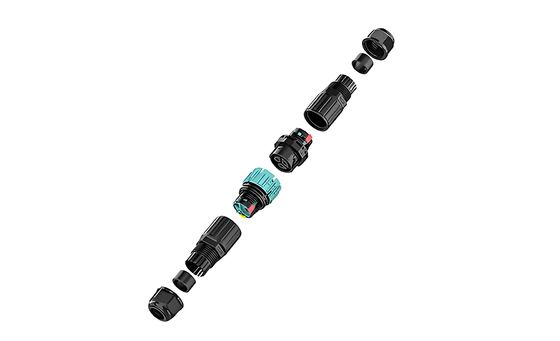

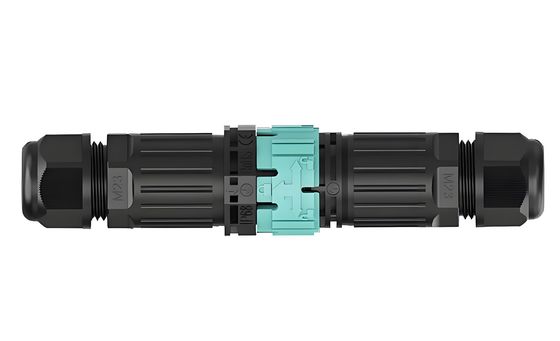

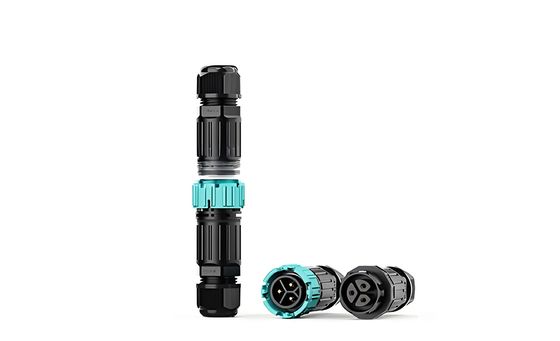

M23 Series Waterproof Connector, Quick Push-Pull Locking, Male & Female

The M23 Series Waterproof Connector features a quick push-pull locking mechanism for secure connections in demanding environments. Designed for industrial applications, it offers reliable performance with IP68 waterproof rating.

Key Specifications

Connection Type	Quick-Connect
Installation Type	Wire-to-Wire
Pin Configuration	3
Material	PA66
Applicable Wire Gauge	0.5mm²-2.5mm²
Waterproof Ring	5-7mm
Rating	IP68

Technical Parameters

Product Name	M23 Series Waterproof Connector, Quick Push-Pull Locking, Male & Female
Wiring Range	4/5P 0.5 - 2.5 mm² 2/3P 0.5 - 4mm²
Rated Current	2/3P 30A 4/5P 15A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-9mm 9-12mm

Product Advantages

Quick Push-Pull Locking: Secure mating with easy disconnection
IP68 Waterproof: Fully protected against water and dust ingress
Rugged Design: Built to withstand harsh industrial environments
Reliable Connection: Ensures stable electrical performance

Typical Applications

Outdoor Surveillance System Connection Solutions

LED Plant Growth Light Solution

Frequently Asked Questions

What is the IP rating of this connector?

IP68-rated, fully waterproof and dustproof.

How does the locking mechanism work?

Features quick push-pull locking for secure mating and easy disconnection.

Is it available in different pin configurations?

Yes, the M23 series offers various pin counts to meet different application needs.

What materials is the connector made from?

Constructed with robust metal shell and high-quality seals for durability.

Can it withstand harsh environments?

Yes, resistant to water, dust, vibration, and suitable for industrial use.

Are mating connectors included?

Sold as matched male and female pairs for complete connectivity.
