Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position
  • Nombre

Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position

Nombre De La Marca: Cablein
MOQ: 100pcs
Precio: The price ranges from $1 to $4 USD per pieces
Detalles Del Embalaje: Carton de exportación de alta calidad
Condiciones De Pago: T/T, Unión Occidental
Información detallada
Descripción de producto
Información detallada
Lugar de origen:
Shenzhen China
Certificación:
CE, ROHS, TUV , ETL
Voltaje de funcionamiento:
450V
Tipo de conector:
Circular
Metal:
Latón dorado
Muestras:
Muestras pagadas
Estilo de bloqueo:
Push Pull Auto-Lock
Disponibilidad de muestra:
Sí
Estilo de Shell:
FGG enchufe recto
Grado de protección:
IP65 - IP68
Capacidad de la fuente:
Salida mensual: 10,000 conjuntos
Descripción de producto
Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position
Specifications

Connection Type: Quick Connect

Installation Type: Wire-to-Wire

Pin: 2

Material: PA66

Applicable Wire Gauge: 0.5mm²-2.5mm²

Waterproof Ring: 5-9mm 9-12mm

Rating:IP68

Datasheet
Parameter Specification
Product Name Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position
Wiring Range 0.5 - 2.5 mm²
Rated Current 1600mA
Operating Voltage 450V
Ingress Protection (IP) Rating IP66/IP67 /IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-12mm
Advantages
  1. Assured Reliability in Harsh Environments with IP68 Protection.
  2. Tool-Free, Quick Connect/Disconnect Design for Ultimate Efficiency.
  3. Robust and Sealed Construction Resists Water, Dust and Vibration.
  4. Streamlined In-Line Connection Ideal for Tight Spaces and Moving Machinery.

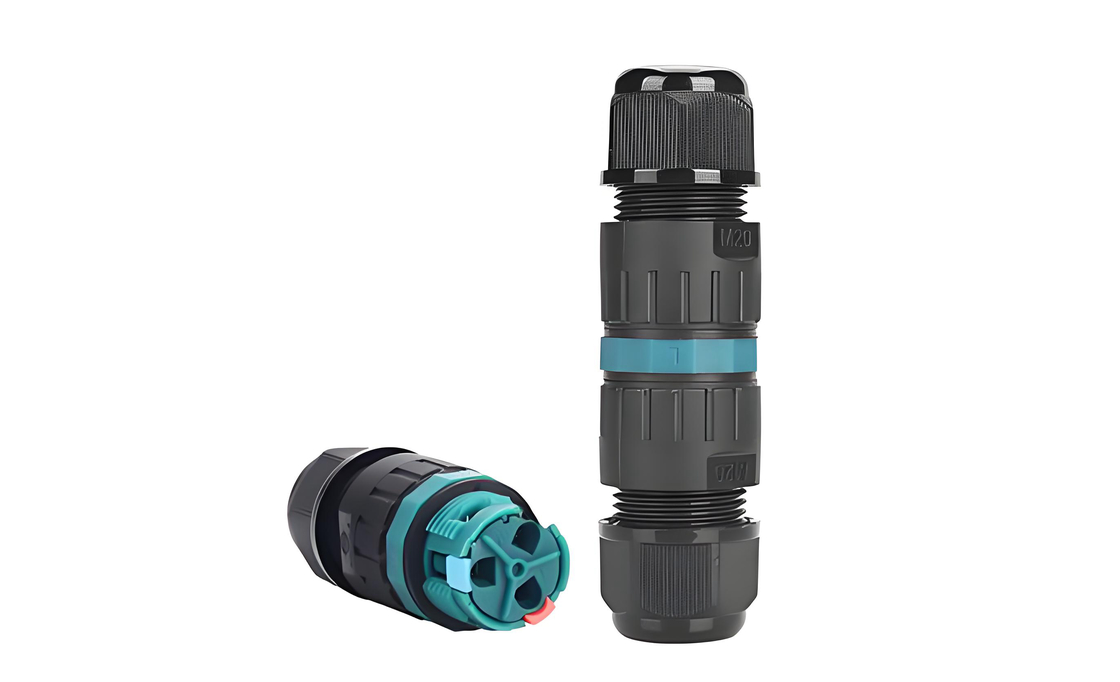

Product Images
Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position 0 Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position 1 Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position 2 Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position 3 Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position 4 Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position 5
FAQ
1. Q: What is the exact meaning and protection level of the IP68 rating for this connector?

A: The IP68 rating guarantees complete protection against dust ingress (IP6X) and the ability to withstand continuous immersion in water under specified conditions, typically beyond 1 meter depth for an extended period. This makes it ideal for harsh outdoor or wash-down environments.

2. Q: Is any special tool required for the mating and installation of this connector?

A: No special tools are required. The connector is designed for a quick, tool-free push-pull locking mechanism, enabling fast and secure connections in the field, saving time and labor costs.

3. Q: What are the voltage and current (ampacity) ratings for the P20 2-Position connector?

A: This connector is rated for [Please insert your specific values, e.g., 16A or 250V], ensuring robust performance for a wide range of industrial power and signal applications.

4. Q: What is the operating temperature range of this in-line connector?

A: It features a wide operating temperature range of [Please insert your specific values, e.g., -40°C to +85°C], ensuring stable performance and reliability in extreme hot or cold conditions.

5. Q: Is this connector compatible with cables from other series or manufacturers?

A: While optimized for performance within the P20 series, it is designed to standard specifications. We recommend consulting our detailed cable compatibility sheet to ensure optimal sealing and mechanical strength.

6. Q: What industries or applications is this connector most suited for?

A: Its IP68 rating and robust design make it a perfect solution for industrial automation, outdoor LED lighting, heavy-duty machinery, agricultural equipment, and any application exposed to moisture, dust, or vibrations.

Etiquetas:

Conector circular resistente al agua

Conectores masculinos y femeninos

Conectores de cable circulares
