Conector circular a prueba de agua

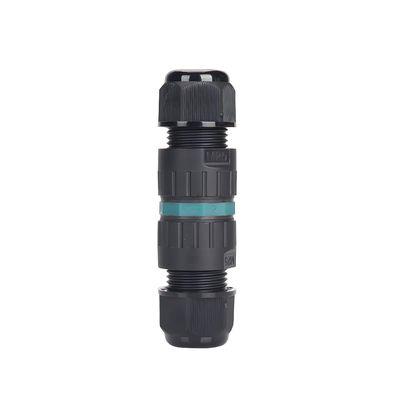

P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage

Todas Las Categorías

Conector circular a prueba de agua

Conector hembra-varón impermeable

Conector de poder impermeable

conector de cable impermeable

Conector de señal a prueba de agua

Conector de datos a prueba de agua

Conector impermeable RJ45

Conector de montaje de panel impermeable

Conectores LED a prueba de agua

Enchufe de energía

Éntrenos en contacto con

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contacto ahora

P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage

Nombre De La Marca:	Cablein
MOQ:	100pcs
Precio:	The price ranges from $1 to $4 USD per pieces
Detalles Del Embalaje:	Carton de exportación de alta calidad
Condiciones De Pago:	T/T, Unión Occidental

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Shenzhen China

Certificación:

CE, ROHS, TUV , ETL

Grado de protección:

IP65 - IP68

Tipo de conector:

Circular

Rango de temperatura:

-40°C~+105°C

Estándar:

Vida de inserción:

1000 veces

Muestras:

Muestras pagadas

Capacidad de la fuente:

Salida mensual: 10,000 conjuntos

Resaltar:

0.5mm²-2.5mm² Wire Gauge P25 Connector

1600mA Rated Current Waterproof Circular Connector

0.45KV Operating Voltage Quick-Connect In-Line Connector

Descripción de producto

Waterproof Connector P25 5-Pin IP67 Quick-Connect In-Line

The Waterproof Connector P25 features a 5-pin IP67 quick-connect design for reliable in-line wire-to-wire connections in demanding environments.

Specifications

Connection Type: Quick Connect
Installation Type: Wire-to-Wire
Pin: 5
Material: PA66
Applicable Wire Gauge: 0.5mm²-2.5mm²
Waterproof Ring: 5-9mm 9-12mm 10-14mm
Rating: IP68

Technical Parameters

Parameter	Specification
Product Name	Waterproof Connector P25 5-Pin IP67 Quick-Connect In-Line
Wiring Range	0.5 - 2.5 mm²
Rated Current	1600mA
Operating Voltage	0.45KV
Ingress Protection (IP) Rating	IP66/IP67/IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-14mm

Key Advantages

IP68 Rated for Dust & Water Protection: Complete protection against dust ingress and reliable operation when submerged, ideal for harsh environments.
Tool-Free Quick-Connect Operation: Simple push-and-lock design enables fast installation without tools.
5-Pin Design for Versatile Applications: Simultaneously transmits power, signals, and data in a single connection for complex systems.
Durable In-Line Construction: Robust design ensures long-term reliability in demanding applications.

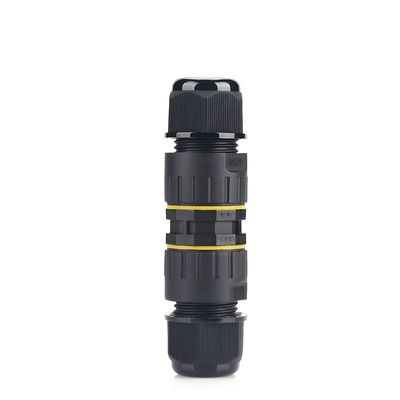

Product Images

Frequently Asked Questions

What is the IP68 rating?

The IP68 certification guarantees the connector is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

How does the quick-connect mechanism work?

It features a simple push-and-lock design that allows for secure mating and disconnection without any tools.

What wire gauges are compatible?

It is designed to accommodate standard wire gauges, with a common range of up to 18 AWG for flexible and reliable wiring.

Etiquetas:
