Conector circular a prueba de agua

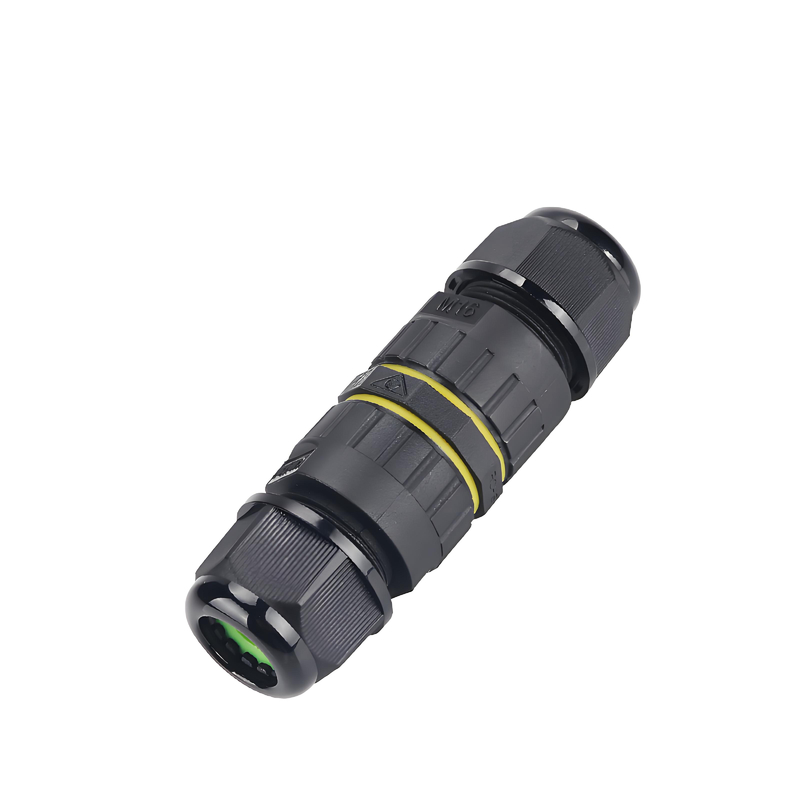

Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking

Todas Las Categorías

Conector circular a prueba de agua

Conector hembra-varón impermeable

Conector de poder impermeable

conector de cable impermeable

Conector de señal a prueba de agua

Conector de datos a prueba de agua

Conector impermeable RJ45

Conector de montaje de panel impermeable

Conectores LED a prueba de agua

Enchufe de energía

Éntrenos en contacto con

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contacto ahora

Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking

Nombre De La Marca:	Cablein
MOQ:	100pcs
Precio:	The price ranges from $1 to $4 USD per pieces
Detalles Del Embalaje:	Carton de exportación de alta calidad
Condiciones De Pago:	T/T, Unión Occidental

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

SHENZHEN CHINA

Certificación:

CE, ROHS, TUV , ETL

Grado IP:

IP68

Pin de contacto:

2 pines

Tipo de producto:

Conector circular

Color:

Negro

Palabras clave:

conector de cable de encendido

Vida mecánica:

≥1000 veces

estilo de apareamiento:

Tornillo

Resistencia a la llama:

UL94 V-0

Capacidad de la fuente:

Salida mensual: 10,000 conjuntos

Descripción de producto

Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking

Specifications

Installation Type: Wire-to-Wire

Connection Type: Screw Locking

Rating: IP68

Pin: 2

Waterproof Ring: 3.5-7mm 5-8mm 7-10mm

Applicable Wire Gauge: 0.5mm²-1.5mm²

Material: PA66

Datasheet

Parameter	Specification
Product Name	Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking
Wiring Range	0.5mm² - 1.5 mm²
Rated Current	17.5A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67/IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	3.5-7mm 5-8mm 7-10mm

Advantages

1. Ensures Vibration-Proof & Secure Connections
The screw-locking mechanism prevents loosening under stress, guaranteeing a stable and reliable connection in high-vibration environments like machinery and vehicles.
2. Delivers Ultimate IP68 Environmental Protection
Fully sealed against dust, dirt, and prolonged water submersion, this connector provides unwavering performance in harsh outdoor and industrial settings.
3. Simplifies Installation with a Straight-Through Design
The intuitive in-line design allows for quick, tool-free mating, significantly reducing installation time and effort for cable-to-cable connections.
4. Built for Durability with a Robust M16 Interface
Featuring a standardized M16 threaded design and high-grade materials, this connector resists corrosion, impact, and mechanical wear for long-term use.

Product Images

FAQ

1. What is the IP68 rating suitable for?

The IP68 rating ensures complete protection against dust and prolonged immersion in water, making it ideal for outdoor, industrial, and automotive applications.

2. How does the screw-locking mechanism work?

It features a threaded coupling nut that, when hand-tightened, secures the connection against vibration and accidental disconnection.

3. Is this a cable-to-cable or panel-mounted connector?

This is a straight-through, in-line connector designed specifically for cable-to-cable connections.

Etiquetas:

Conector circular resistente al agua

Conectores masculinos y femeninos

Conectores de cable circulares
