M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector

Nombre De La Marca:	Cablein
MOQ:	100pcs
Precio:	The price ranges from $1 to $4 USD per pieces
Detalles Del Embalaje:	Carton de exportación de alta calidad
Condiciones De Pago:	T/T, Unión Occidental

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

SHENZHEN CHINA

Certificación:

CE, ROHS, TUV , ETL

Actual:

41A máx. por el poder

Resistencia a aislamiento:

≥1000mΩ

Estilo conector:

Derecho

Certificaciones:

CE, ROHS

Finalizar:

Oro

Número de conector:

Color:

Negro

Temperatura de trabajo:

-40 ~ 105 °C

Capacidad de la fuente:

Salida mensual: 10,000 conjuntos

Resaltar:

41A Max Current Waterproof Circular Connector

PA66 Material Through-Type Connector

-40~105℃ Working Temperature Screw Locking Connector

Descripción de producto

M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector

High-performance waterproof connector designed for industrial applications requiring secure, weatherproof electrical connections.

Key Specifications

Installation Type	Wire-to-Wire
Connection Type	Screw Locking
Rating	IP68
Pin Configuration	3-Pin
Waterproof Ring Sizes	5-9mm, 9-12mm, 10-14mm
Applicable Wire Gauge	1.5mm²-6mm²
Material	PA66 (Nylon)

Technical Parameters

Parameter	Specification
Product Name	M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector
Wiring Range	1.5mm² - 6 mm²
Rated Current	41A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67/IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-9mm, 9-12mm, 10-14mm

Product Advantages

1. Unshakable Connection in Demanding Environments

Superior vibration resistance with screw locking mechanism ensures a tight, secure grip on cables, preventing loosening even under constant vibration or mechanical stress. Guarantees stable and reliable electrical connection with minimal downtime.

2. Ultimate Protection Against Water and Dust

IP68 rated for complete protection against dust and water. Fully dust-tight and withstands continuous submersion, making it ideal for outdoor, marine, and industrial applications.

3. Streamlined Installation and Maintenance

Effortless through-type wiring design simplifies the wiring process, allowing for quick and tool-efficient cable insertion and securing from one or both ends, reducing installation time and labor costs.

4. Robust Durability for Long-Term Reliability

Constructed from premium PA66 (Nylon) and high-grade seals, this connector resists corrosion, UV exposure, and chemical degradation, ensuring long service life in harsh conditions.

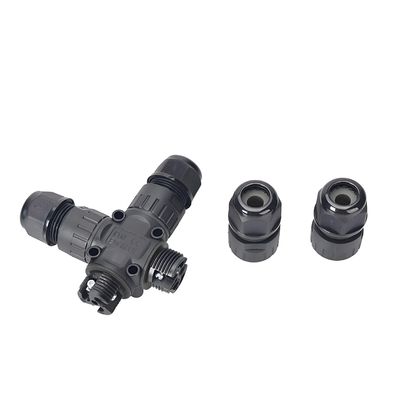

Product Images

Frequently Asked Questions

Q1: What is the maximum depth and duration for the IP68 waterproof rating?

A: Certified to IP68 standard, this connector can be continuously submerged in water up to 1.5 meters (approximately 4.9 feet) deep for a maximum of 30 minutes. Ideal for applications exposed to heavy rain, splashing, or temporary immersion.

Q2: What is the main advantage of the screw-locking design compared to push-pull connectors?

A: The screw-locking mechanism provides vibration-proof security, mechanically preventing connection loosening over time due to vibration, shock, or cable strain. Ensures consistently reliable electrical connection, superior to push-pull types in industrial, automotive, or mobile equipment applications.

Q3: What cable outer diameter (OD) range is this connector compatible with?

A: Designed to accommodate standard cable outer diameters from 5mm to 14mm. For optimal sealing and strain relief, use cables within this specified range. Check your cable specifications before installation.
