M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage
  • Nombre

M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage

Nombre De La Marca: Cablein
MOQ: 100pcs
Precio: The price ranges from $1 to $4 USD per pieces
Detalles Del Embalaje: Carton de exportación de alta calidad
Condiciones De Pago: T/T, Unión Occidental
Información detallada
Descripción de producto
Información detallada
Lugar de origen:
SHENZHEN CHINA
Certificación:
CE, ROHS, TUV , ETL
Voltaje de desglose:
1500 V o más
Clasificación impermeable:
IP68
Vida de inserción:
1000 veces
Color:
Negro
Número de alfileres:
2 pines
Material de alojamiento:
PA66
Certificaciones:
UL/CE/ROHS
Material de sellado:
Silicón, de goma
Capacidad de la fuente:
Salida mensual: 10,000 conjuntos
Resaltar:

2-Port T-Shape Waterproof Circular Connector

,

2-Core 1 In 2 Out T-Shape Connector

,

1500V Breakdown Voltage M25TC Connector

Descripción de producto
M25TC 2-Port T-Shape IP68 Waterproof Connector 2-Core 1 In 2 Out
Product Overview

The M25TC is a high-performance T-shape waterproof connector designed for reliable power or signal distribution in demanding environments. Its 1-in-2-out configuration simplifies circuit splitting while maintaining IP68 protection.

Technical Specifications
Parameter Specification
Product Name M25TC 2-Port T-Shape IP68 Waterproof Connector 2-Core 1 In 2 Out
Wiring Range 0.5mm² -4 mm²
Rated Current 32A
Operating Voltage 450V
Ingress Protection (IP) Rating IP67/IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm 10-14mm
Key Features
  • Superior IP68 Protection

    Engineered with robust sealing to reliably guard against dust, water ingress, and harsh environmental conditions, ensuring stable performance in outdoor and industrial applications.

  • Effortless T-Type Circuit Splitting

    Features a practical 1-in-2-out design that simplifies power or signal distribution from a single source to two devices, streamlining your wiring layout and saving installation time.

  • Secure & Vibration-Resistant Connection

    The screw-type termination ensures a tight, reliable contact that resists loosening under vibration, guaranteeing long-term electrical safety and connection integrity.

  • Compact & Durable Build

    The compact T-shape housing saves space without compromising on mechanical strength, making it an ideal and rugged solution for space-constrained installations.

Product Images

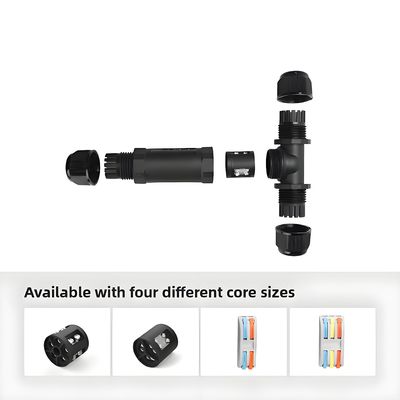

M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 0
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 1
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 2
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 3
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 4
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 5
Frequently Asked Questions
Q: What is the maximum current and voltage rating for this connector?
A: The M25TC connector is typically rated for 10A and 250V AC/DC. However, we always recommend consulting the specific product datasheet for the exact specifications applicable to your wire gauge and environmental conditions to ensure optimal performance and safety.
Q: How is the IP68 waterproof rating achieved and what does it protect against?
A: The IP68 rating is achieved through a combination of a precision-machined housing, a silicone sealing gasket, and integrated cable gland rings. This robust design offers complete protection against dust ingress and long-term water immersion at depths up to 1 meter for 30 minutes, making it ideal for demanding outdoor and industrial applications.
Q: Is this connector suitable for use with flexible or stranded wire?
A: Yes, absolutely. The screw-type clamping terminals of the M25TC are specifically designed to securely hold and make reliable contact with standard flexible/stranded wires. This ensures a stable, vibration-resistant connection without damaging the conductors.
Etiquetas:

Conector circular resistente al agua

Conectores masculinos y femeninos

Conectores de cable circulares

Buen precio en línea
