M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
  • Nombre

M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out

Nombre De La Marca: Cablein
MOQ: 100pcs
Precio: The price ranges from $1 to $4 USD per pieces
Detalles Del Embalaje: Carton de exportación de alta calidad
Condiciones De Pago: T/T, Unión Occidental
Información detallada
Descripción de producto
Información detallada
Lugar de origen:
SHENZHEN CHINA
Certificación:
CE, ROHS, TUV , ETL
Temperatura de funcionamiento:
-25°C a +80°C
Clasificación IP:
IP67/IP68/IP69
Certificaciones:
UL/CE/ROHS
Modo de conexión:
el enchufe/desenchufa
estilo de apareamiento:
Tornillo
Material del alfiler de contacto:
Las demás piezas de cobre
Número de alfiler:
2-5 agujas
Fijación del cable:
Diámetro exterior = 5 mm--14 mm
Capacidad de la fuente:
Salida mensual: 10,000 conjuntos
Resaltar:

5-Pin Waterproof Circular Connector

,

1 In 2 Out M25 Connector

,

PA66 Material Screw Lock Connector

Descripción de producto

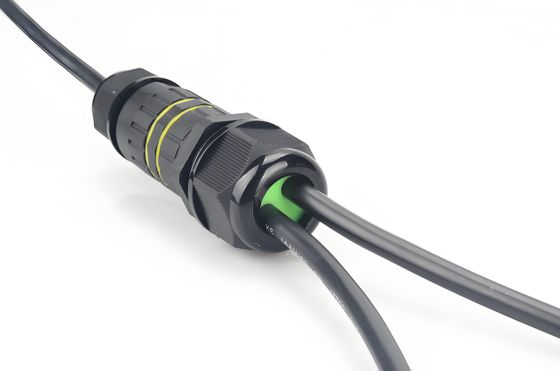

M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
This industrial-grade connector features a 1-in 2-out design for efficient power or signal distribution, with IP68 waterproof protection and secure screw-lock mechanism for reliable performance in harsh environments.
Key Specifications
Parameter Specification
Product Name M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
Wiring Range 0.5mm² -2.5 mm²
Rated Current 24A
Operating Voltage 0.4KV
Ingress Protection (IP) Rating IP67/IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm 10-14mm
Product Advantages
  • 1-in 2-Out Compact Design: Enables efficient power or signal distribution from a single source, simplifying wiring and saving space.
  • IP68 Rated for Harsh Environments: Fully waterproof and dustproof, with a robust construction that operates reliably from -40°C to +100°C.
  • Secure Screw Lock Mechanism: Ensures a vibration-resistant, stable connection that won't loosen, preventing downtime.
  • Straight-Through for Easy Wiring: Features an accessible, straight-through design that allows for quick and tool-friendly installation.
Product Images
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 0
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 1
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 2
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 3
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 4
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 5
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 6
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 7
Frequently Asked Questions
What is the primary application of the 1-in 2-out design?
This design is ideal for daisy-chaining or power/signal splitting. You can efficiently connect a single power source to two separate devices, such as linking two sensors, powering a main unit and an auxiliary light, or simplifying wiring in control cabinets, which significantly reduces installation time and cost.
How reliable is the IP68 waterproof rating in real-world conditions?
Our IP68 rating is rigorously tested. It guarantees complete protection against dust ingress and can be continuously submerged in water over 1 meter deep for extended periods. This makes it perfectly suited for harsh environments like outdoor installations, washdown areas in industrial settings, and exposed machinery.
Is the screw locking mechanism vibration-proof and easy to install?
Yes. The threaded screw-lock mechanism provides a secure, vibration-resistant connection that prevents accidental disconnection in high-motion environments. The straight-through design also allows for straightforward wiring, making installation tool-friendly and quick.
